Energy-saving Overflow Ball Mill /Overflow Ball Mill for AAC from China manufacturer

Energy-saving Overflow Ball Mill /Overflow Ball Mill for AAC

Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 30days

Packing: wooden case

Cone ball mill changes the intrinsic grinding machine structure. Its body and ground plank are integral whole so when fixing.

Specifications

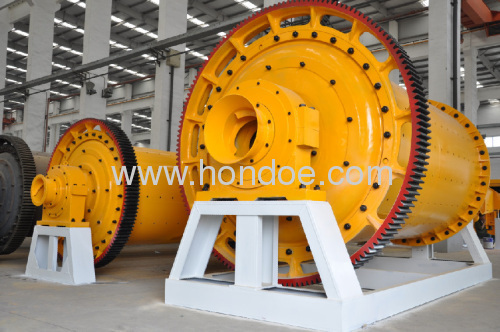

Cone Overflow Ball Mill for AAC Line.
1 Hot sale in Australia
2 1830*4500, 2100*7000..
3 Strong Gear4 Wet and Dry Grinding

Free to contact with Hope +86 0379-62119556 ; SKYPE: luoyanghondoe

Cone ball mill changes the intrinsic grinding machine structure. Its body and ground plank are integral whole so when fixing.

Cone ball miller can be lowered on a plane surface once only use double tired roller axletree with grille pattern forcing evacuation is instead by overfill pattern controlling one. This can improve the milling of the granule and the quality dealt with is Inc raised by 15%-20%.

Specifications of Cone overflow ball mill

Model
Speed of bucket
(r/min)
Weight
of ball
Size of
feed opening(mm)
size of outputting
feed (mm)
Production
(t/h)
Power
(kw)
Weight
(T)
900×1800
38
1.5
≤20
0.075-0.89
0.65-2
18.5
3.6
900×3000
38
2.7
≤20
0.075-0.89
1.1-3.5
22
4.6
1200×2400
32
3.8
≤25
0.075-0.6
1.5-4.8
45
12.5
1200×3000
32
5
≤25
0.075-0.4
1.6-5
45
12.8
1200×4500
32
7
≤25
0.075-0.4
1.6-5.8
55
13.8
1500×3000
27
8
≤25
0.075-0.4
2-5
90
17
1500×4500
27
14
≤25
0.075-0.4
3-6
110
21
1500×5700
27
15
≤25
0.075-0.4
3.5-6
132
24.7
1830×3000
24
11
≤25
0.075-0.4
4-10
180
28
1830×6400
24
23
≤25
0.075-0.4
6.5-15
210
34
1830×7000
24
25
≤25
0.075-0.4
7.5-17
245
36
2200×5500
21
30
≤25
0.075-0.4
10-22
370
48.5
2200×6500
21
30
≤25
0.075-0.4
14-26
280
52.8
2200×7500
21
33
≤25
0.075-0.4
16-29
475
56
