energy saving overflow ball mill / ball mill with roller bea from China manufacturer

energy saving overflow ball mill / ball mill with roller bea

Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 30days

Packing: wooden case

Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries.

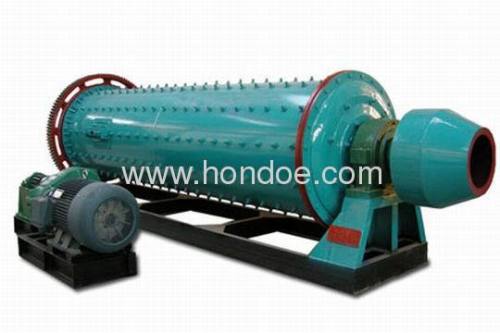

Product name: Cylindrical shaped energy saving overflow ball mill with roller bearing

Specifications

1.roller bearing, low friction
2.ringed liner, good milling effect
3.high capacity
4.save 20-30% energy

Cylindrical shaped energy saving overflow ball mill with roller bearing

Feature:

1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.
2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.
3.All-in-one frame is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.

Parameter of cylindrical shaped energy saving overflow ball mill with roller bearing

Model
Cylinder Diameter*Length(mm)
Revolution(r/min)
Effective
volume(m3)
Max load of balls(t)
Capacity(t/h)
Motor
W
(t)
Model
Power(kw)
MQYJ0909
900*900
41.57
0.45
0.9
0.22-1.07
Y160L-6
11
4.2
MQYJ0918
900*1800
41.57
0.9
1.92
0.44-2.14
Y180L-6
15
5.5
MQYJ1216
1200*1600
35.5
1.5
2.5
0.4-6.2
Y225M-6
30
9.2
MQYJ1228
1200*2800
35.5
2.6
4.3
0.35-8.2
Y280M-6
55
11.5
MQYJ1515
1500*1500
28
2.2
3.6
1. 4-4. 5
YR280S-8
55
12
MQYJ1524
1500*2400
28
3.6
5.6
2.2-7.2
Y315M-8
75
14.5
MQYJ1530
1500*3000
30.5
5
8.6
3.8-8
YR280M-8J
80
19.5
MQYJ1536
1500*3600
30.5
5.4
9.6
4.8-10
YR315S-8J
95
22.5
